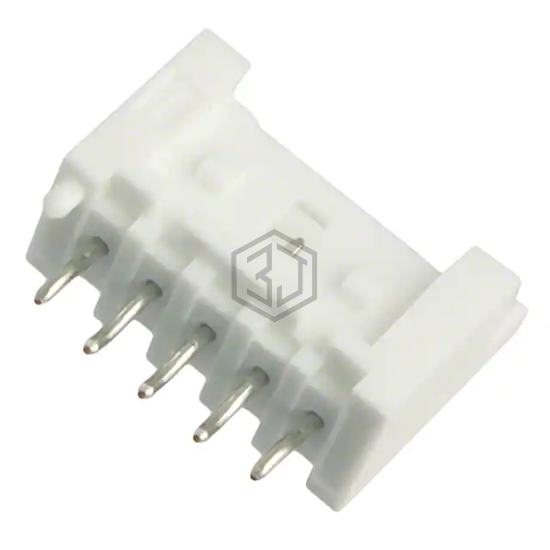

CONN HEADER VERT 5POS 2.5MM
0533750510 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 5POS 2.5MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250V, contact material Phosphor Bronze.
In Stock: 80,176
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.453" (11.50mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polybutylene Terephthalate (PBTP), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 250V |
