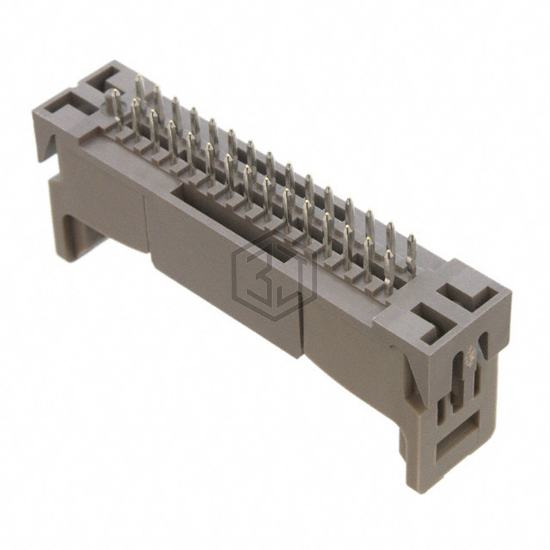

CONN HEADER VERT 30POS 2MM
0533143065 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 30POS 2MM. Key specifications: mounting type Through Hole, contact material Brass, termination Solder, number of positions 30.
In Stock: 123
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.098" (2.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks |
| Contact Length - Mating | - |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 40.0µin (1.02µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
