CONN HEADER VERT 13POS 2MM

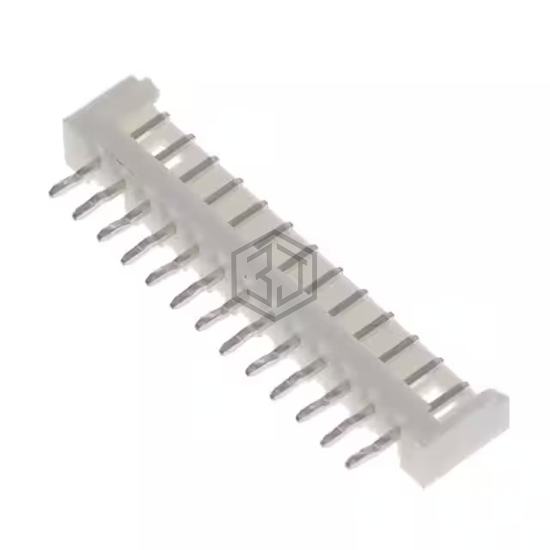

0532901380 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 13POS 2MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 125V, contact material Brass.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 3 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.130" (3.30mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 0.335" (8.51mm) |
| Insulation Height | 0.236" (6.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 125V |
Submit your RFQ for 0532901380 and get a quote within 24 hours.
