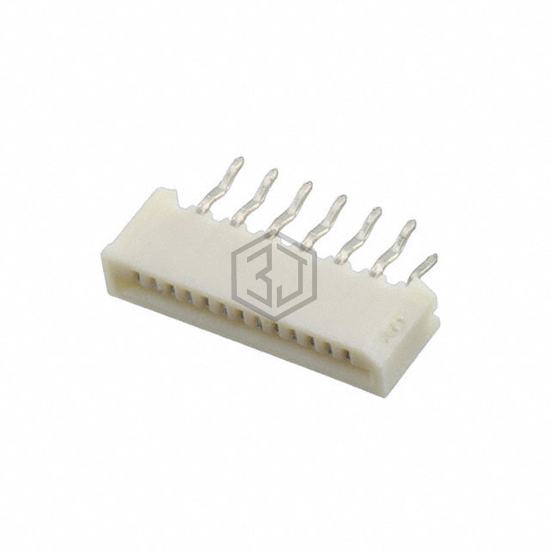

CONN FPC VERT 13POS 1.00MM PCB
0528061310 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FPC VERT 13POS 1.00MM PCB. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, voltage rating 50V, housing material Polyphenylene Sulfide (PPS).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 13 |
| Pitch | 0.039" (1.00mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.213" (5.40mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -20°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 0528061310 and get a quote within 24 hours.
