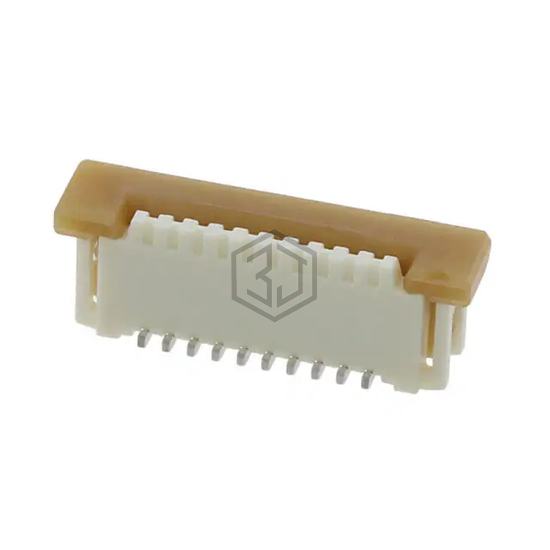

CONN FPC VERT 10POS 1.00MM SMD
0526101033 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FPC VERT 10POS 1.00MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 125V, housing material Polyamide (PA), Nylon, Glass Filled.
In Stock: 53,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 10 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.226" (5.74mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin Bismuth |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 125V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 0526101033 and get a quote within 24 hours.
