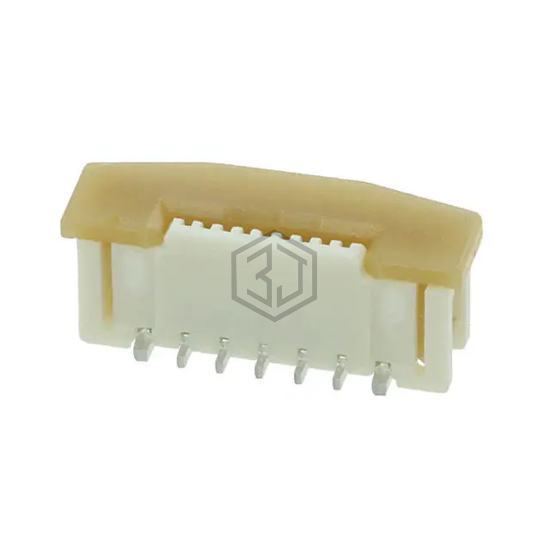

CONN FFC VERT 9POS 0.50MM SMD
0525590952 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FFC VERT 9POS 0.50MM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating 50V, housing material Polyamide (PA46), Nylon 4/6.
In Stock: 6,484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 9 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.154" (3.90mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 0525590952 and get a quote within 24 hours.
