CONN FFC FPC TOP 3POS 1.00MM R/A

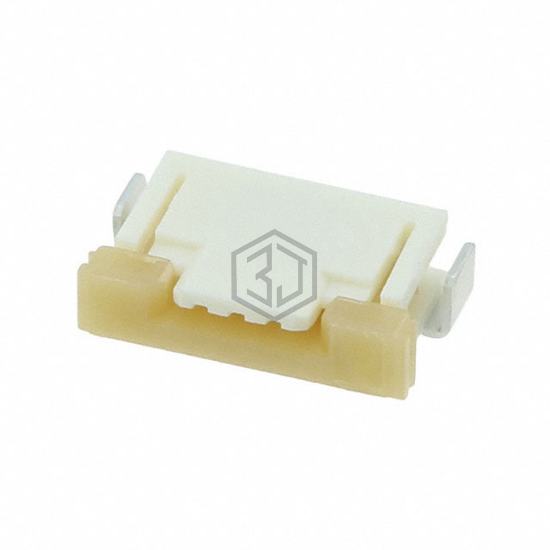

0522070360 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FFC FPC TOP 3POS 1.00MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -30°C ~ 85°C, voltage rating 125V, housing material Polyamide (PA46), Nylon 4/6.
In Stock: 27,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 3 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.106" (2.70mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 125V |
| Operating Temperature | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 0522070360 and get a quote within 24 hours.
