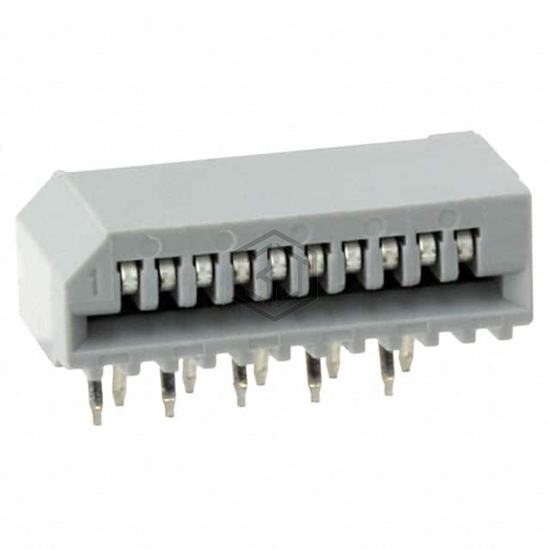

CONN FFC TOP 10POS 1.25MM R/A
0520441045 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FFC TOP 10POS 1.25MM R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 200V, housing material Polybutylene Terephthalate (PBT), Polyester.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 10 |
| Pitch | 0.049" (1.25mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.197" (5.00mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 200V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 0520441045 and get a quote within 24 hours.
