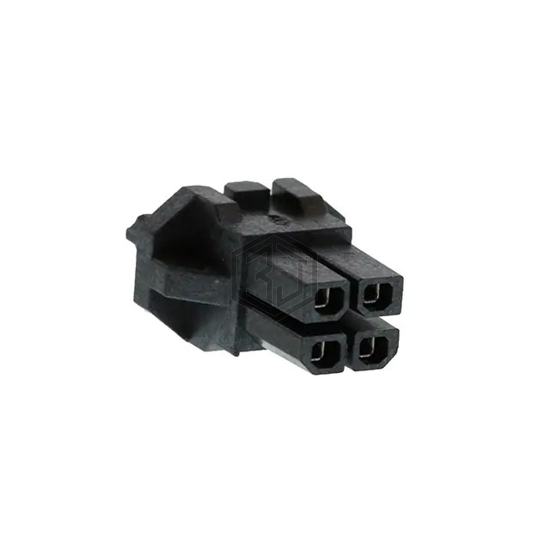

CONN RCPT 4POS 0.118 TIN PCB
0447690401 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 4POS 0.118 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250VAC, current rating (amps) 5A.
In Stock: 20,807
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Insulation Color | Black |
| Insulation Height | 0.535" (13.60mm) |
| Contact Length - Post | 0.134" (3.40mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 16.86mm |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 5A |
| Voltage Rating | 250VAC |
Submit your RFQ for 0447690401 and get a quote within 24 hours.
