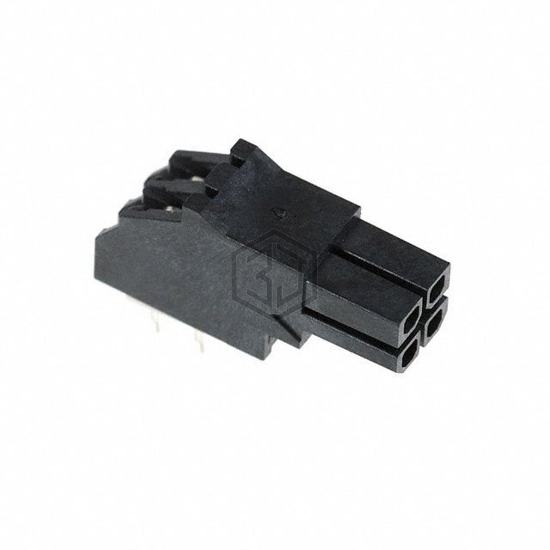

CONN RCPT 4POS 0.118 TIN PCB R/A
0447640401 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 4POS 0.118 TIN PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 600VAC, current rating (amps) 5A.
In Stock: 556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 40.0µin (1.02µm) |
| Insulation Color | Black |
| Insulation Height | 0.402" (10.20mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 5A |
| Voltage Rating | 600VAC |
