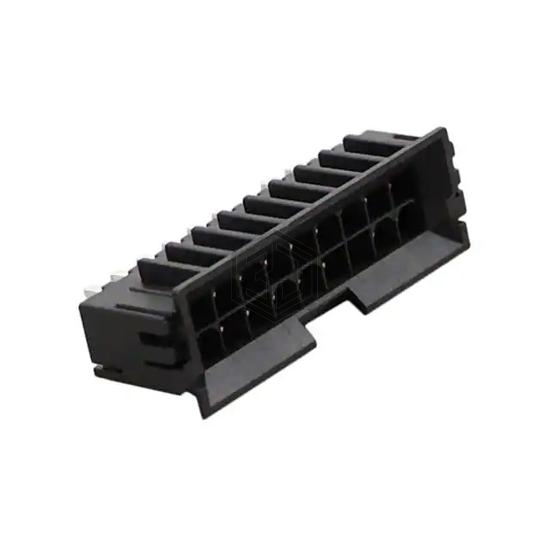

0438794003 - Molex - Rectangular Connectors - Headers, Male Pins

0438794003

Molex

MINIFIT BMI JR CPI HDR ASSY /VOI

0438794003 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. MINIFIT BMI JR CPI HDR ASSY /VOI. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 600VAC/DC, contact material Phosphor Bronze.

In Stock: 180

Product Attributes

AttributeValue
Product StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.165" (4.20mm)
Number of Positions18
Number of Rows2
Row Spacing - Mating0.165" (4.20mm)
Number of Positions Loaded16
StyleBoard to Board or Cable
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole
TerminationPress-Fit, Solder
Fastening TypeLatch Holder
Contact Length - Mating-
Contact Length - Post0.246" (6.25mm)
Overall Contact Length-
Insulation Height0.587" (14.91mm)
Contact ShapeSquare
Contact Finish - MatingGold
Contact Finish Thickness - Mating3.00µin (0.076µm)
Contact Finish - PostTin
Contact MaterialPhosphor Bronze
Insulation MaterialPolyamide (PA), Nylon, Glass Filled
Features-
Operating Temperature-40°C ~ 105°C
Ingress Protection-
Material Flammability RatingUL94 V-0
Insulation ColorBlack
Current Rating (Amps)Varies by Wire Gauge
Voltage Rating600VAC/DC

Frequently Asked Questions

0438794003 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. MINIFIT BMI JR CPI HDR ASSY /VOI

The mounting type of 0438794003 is Through Hole.

The operating temperature range of 0438794003 is -40°C ~ 105°C.

The supply voltage of 0438794003 is 600VAC/DC.
