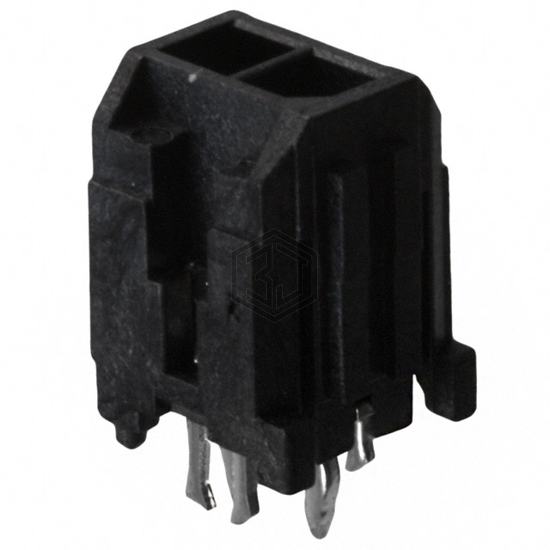

CONN HEADER VERT 2POS
0430450224 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 2POS. Key specifications: mounting type Through Hole, voltage rating 600V, contact material Brass, current rating (amps) 8A.
In Stock: 13,796
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Guide, Board Lock |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 8A |
| Voltage Rating | 600V |
Submit your RFQ for 0430450224 and get a quote within 24 hours.
