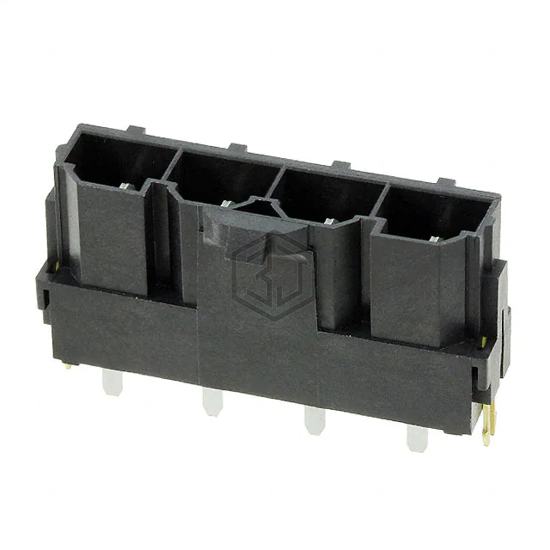

CONN HEADER VERT 4POS 10MM
0428194224 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 4POS 10MM. Key specifications: mounting type Through Hole, contact material Copper Zirconium Alloy, termination Solder, number of positions 4.
In Stock: 4,302
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.394" (10.00mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.201" (5.11mm) |
| Overall Contact Length | - |
| Insulation Height | 0.827" (21.00mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Zirconium Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | Board Lock |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
