TERM BLOCK PLUG 4POS 5.08MM

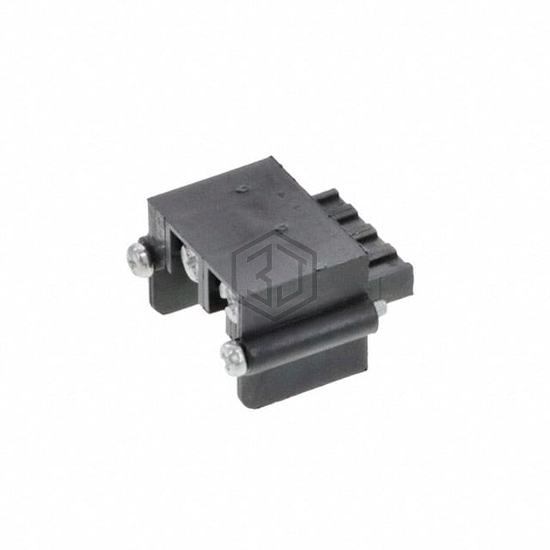

0399400404 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Molex. TERM BLOCK PLUG 4POS 5.08MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 90°C, color Black, termination style Screw with Captive Plate.
In Stock: 240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Barrier Strip |
| Number of Positions | 4 |
| Positions Per Level | 4 (Mate), 2 (Input) |
| Number of Levels | 1 (Mate), 2 (Input) |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw with Captive Plate |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 0.3-3.3mm² |
| Color | Black |
| Operating Temperature | -40°C ~ 90°C |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
Submit your RFQ for 0399400404 and get a quote within 24 hours.
