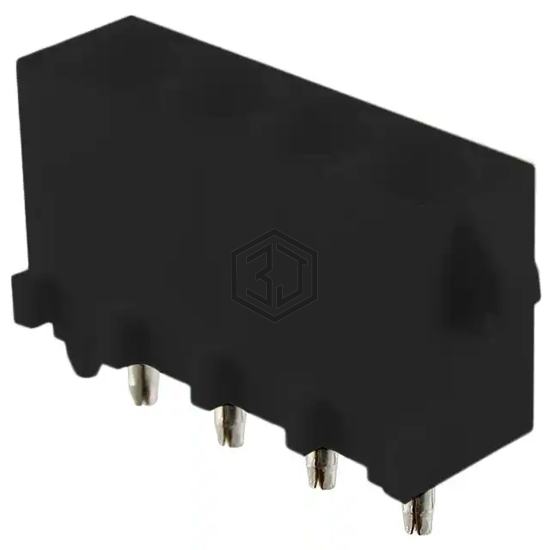

0.084 MLX HEADER 4CKT BLACK WITH
0367590063 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. 0.084 MLX HEADER 4CKT BLACK WITH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 600V, current rating (amps) 12A.
In Stock: 3,210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 137.8µin (3.50µm) |
| Insulation Color | Black |
| Insulation Height | 0.550" (13.97mm) |
| Contact Length - Post | 0.170" (4.32mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 12A |
| Voltage Rating | 600V |
Submit your RFQ for 0367590063 and get a quote within 24 hours.
