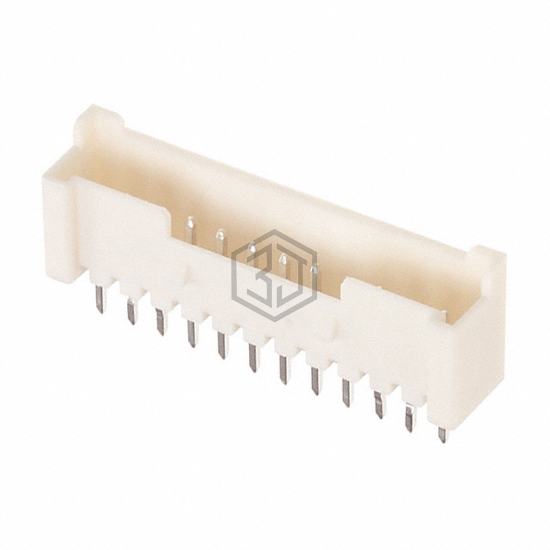

CONN HEADER VERT 12POS 2MM
0353621250 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 12POS 2MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 125V, contact material Brass.
In Stock: 1,906
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.145" (3.70mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.335" (8.51mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | 125V |
Submit your RFQ for 0353621250 and get a quote within 24 hours.
