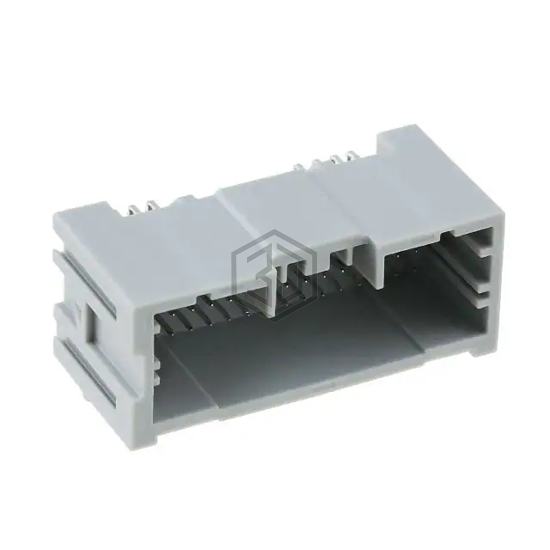

CONN HEADER R/A 38POS
0349618381 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER R/A 38POS. Key specifications: mounting type Through Hole, Right Angle, contact material Copper Alloy, termination Solder, number of positions 38.
In Stock: 105
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | - |
| Number of Positions | 38 |
| Number of Rows | 3 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.108" (2.75mm) |
| Overall Contact Length | - |
| Insulation Height | 0.654" (16.61mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0349618381 and get a quote within 24 hours.
