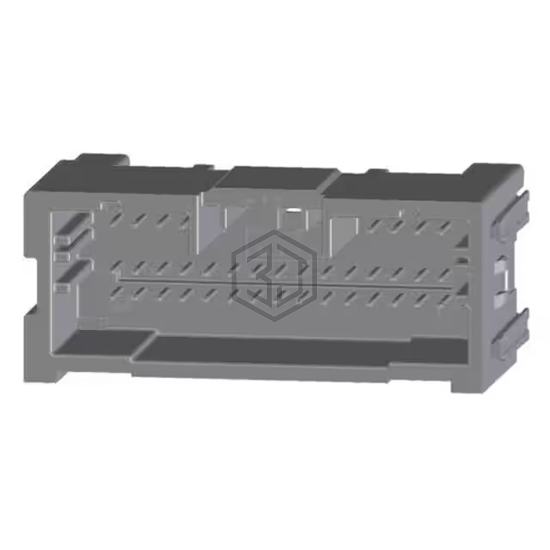

MINI50 VHDR 38CKT GRY POL B TRAY
0349580384 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. MINI50 VHDR 38CKT GRY POL B TRAY. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 14VDC, contact material Copper Alloy.
In Stock: 1,717
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 38 |
| Number of Rows | 3 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.121" (3.08mm) |
| Overall Contact Length | - |
| Insulation Height | 0.697" (17.70mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Insulation Color | Gray |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 14VDC |
