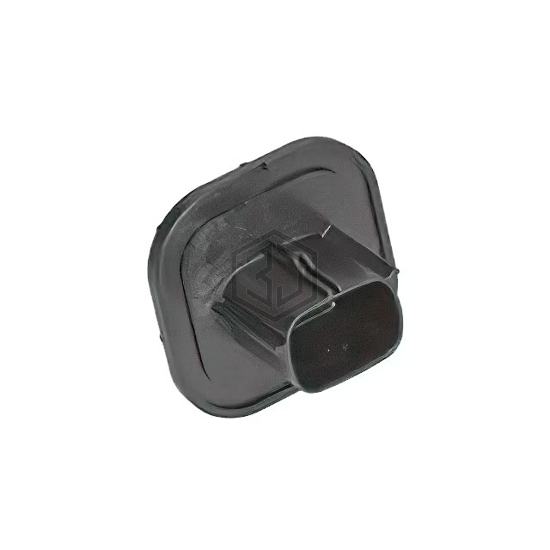

HSAUTOLINKII ASSY 12 CKT VERT HD
0348580506 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. HSAUTOLINKII ASSY 12 CKT VERT HD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 30VAC/DC, contact material Copper Alloy.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.065" (1.65mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.089" (2.25mm) |
| Overall Contact Length | - |
| Insulation Height | 0.870" (22.10mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 1.5A per Contact |
| Voltage Rating | 30VAC/DC |
Submit your RFQ for 0348580506 and get a quote within 24 hours.
