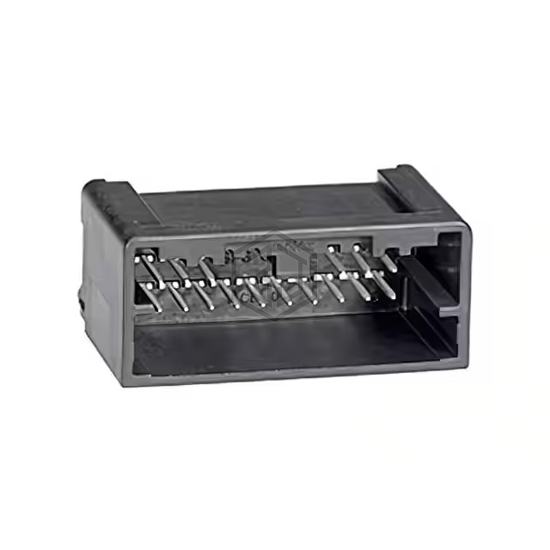

CONN HEADER VERT 16POS 2MM
0348250161 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 16POS 2MM. Key specifications: mounting type Through Hole, contact material Brass, termination Solder, number of positions 16.
In Stock: 535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.218" (5.55mm) |
| Contact Length - Post | 0.113" (2.87mm) |
| Overall Contact Length | - |
| Insulation Height | 0.614" (15.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide, Solder Retention |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0348250161 and get a quote within 24 hours.
