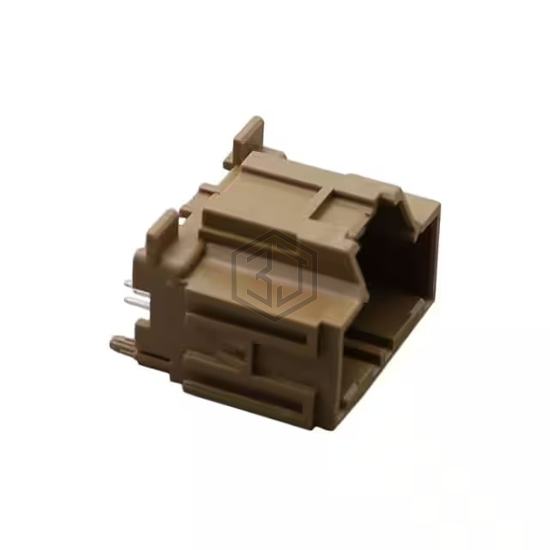

0346909202 - Molex - Rectangular Connectors - Headers, Male Pins

0346909202

Molex

STAC64 VERT HDR 20 CKT BRN POL C

0346909202 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. STAC64 VERT HDR 20 CKT BRN POL C. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 500VDC, contact material Brass.

In Stock: 896

Product Attributes

AttributeValue
Product StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.100" (2.54mm)
Number of Positions20
Number of Rows2
Row Spacing - Mating0.100" (2.54mm)
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeLatch Holder
Contact Length - Mating-
Contact Length - Post0.117" (2.97mm)
Overall Contact Length-
Insulation Height0.886" (22.50mm)
Contact ShapeSquare
Contact Finish - MatingTin
Contact Finish Thickness - Mating-
Contact Finish - PostTin
Contact MaterialBrass
Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled
FeaturesBoard Guide
Operating Temperature-40°C ~ 105°C
Ingress Protection-
Material Flammability Rating-
Insulation ColorBrown
Current Rating (Amps)Varies by Wire Gauge
Voltage Rating500VDC

Frequently Asked Questions

0346909202 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. STAC64 VERT HDR 20 CKT BRN POL C

The mounting type of 0346909202 is Through Hole.

The operating temperature range of 0346909202 is -40°C ~ 105°C.

The supply voltage of 0346909202 is 500VDC.
