CONN HEADER VERT 16POS 2.54MM

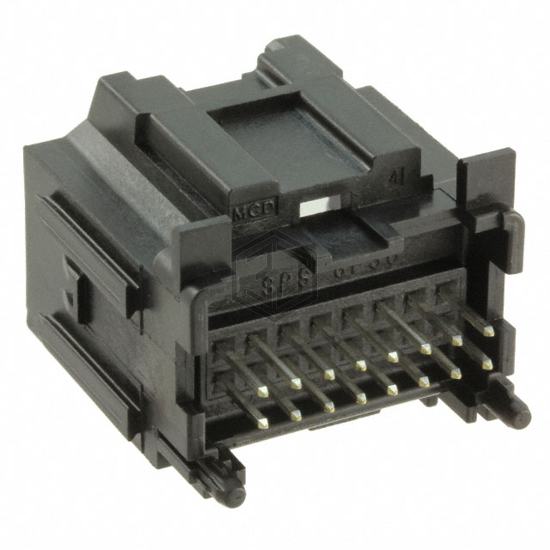

0346900160 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 16POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Cartridge Brass, termination Solder.
In Stock: 1,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.117" (2.97mm) |
| Overall Contact Length | - |
| Insulation Height | 0.886" (22.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Cartridge Brass |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0346900160 and get a quote within 24 hours.
