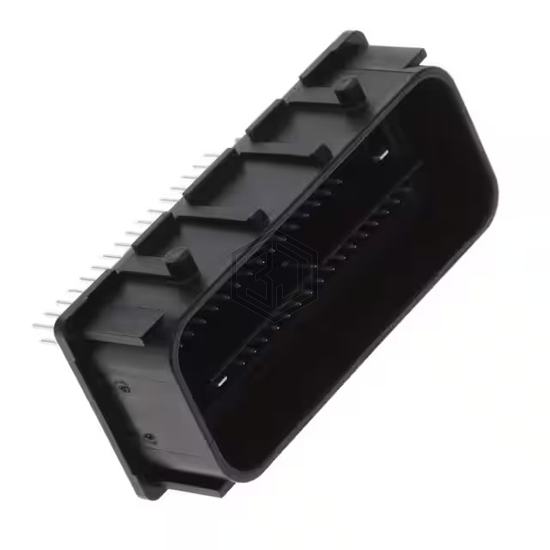

CONN HEADER VERT 66POS 2.54MM
0313878004 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 66POS 2.54MM. Key specifications: mounting type Through Hole, termination Solder, number of positions 66, connector type Header.
In Stock: 220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 66 |
| Number of Rows | 4 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.256" (6.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.848" (21.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 74.8µin (1.90µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
