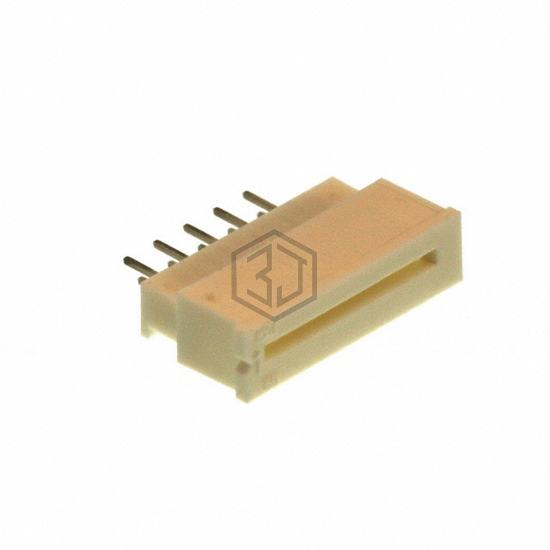

CONN FFC VERT 10POS 1.25MM PCB
0039532105 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN FFC VERT 10POS 1.25MM PCB. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, voltage rating 200V, housing material Polybutylene Terephthalate (PBT), Polyester.
In Stock: 8,553
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 10 |
| Pitch | 0.049" (1.25mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.295" (7.50mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin Bismuth |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Actuator Material | Polybutylene Terephthalate (PBT), Polyester |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 200V |
| Operating Temperature | -20°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
