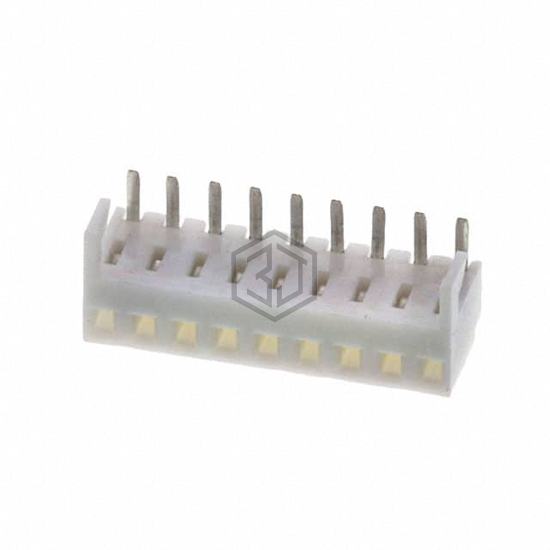

CONN RCPT 9POS 0.1 TIN EDGE MNT
0038001339 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 9POS 0.1 TIN EDGE MNT. Key specifications: mounting type Board Edge, Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 250VAC, current rating (amps) 4A.
In Stock: 633
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Non-Gendered |
| Style | Board to Board or Cable |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Insulation Color | White |
| Insulation Height | 0.185" (4.70mm) |
| Contact Length - Post | 0.132" (3.35mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Hooks |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250VAC |
Submit your RFQ for 0038001339 and get a quote within 24 hours.
