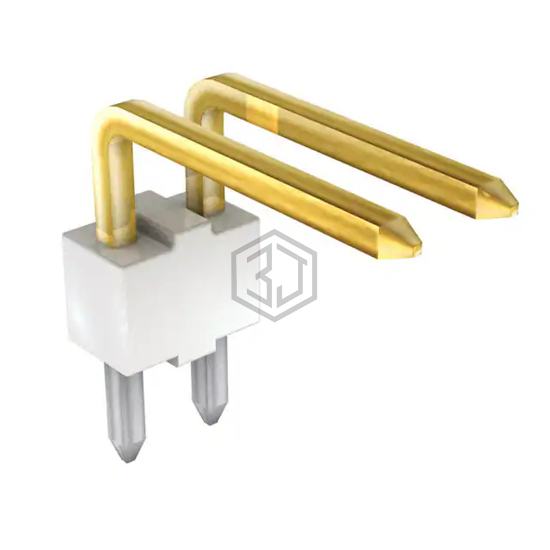

CONN HEADER R/A 2POS 2.54MM
0022122021 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER R/A 2POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, termination Solder, number of positions 2, connector type Header.
In Stock: 11,152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.369" (9.37mm) |
| Contact Length - Post | 0.124" (3.15mm) |
| Overall Contact Length | - |
| Insulation Height | 0.130" (3.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0022122021 and get a quote within 24 hours.
