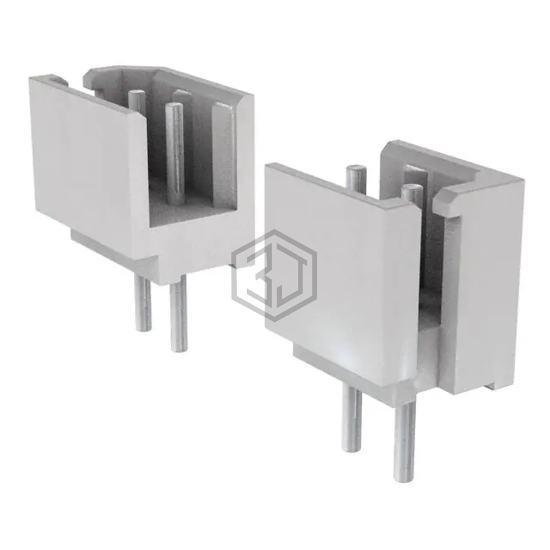

CONN HEADER VERT 14POS 2.5MM
0022035145 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 14POS 2.5MM. Key specifications: mounting type Through Hole, contact material Brass, termination Solder, number of positions 14.
In Stock: 15,994
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.138" (3.50mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Overall Contact Length | 0.350" (8.89mm) |
| Insulation Height | 0.232" (5.90mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
