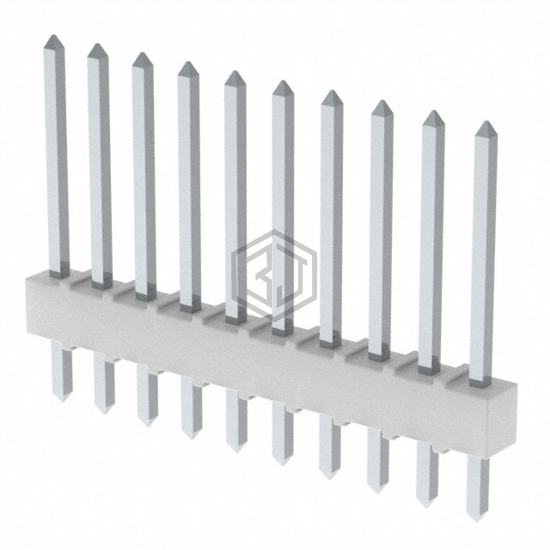

CONN HEADER VERT 10POS 2.54MM
0022032102 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 10POS 2.54MM. Key specifications: mounting type Through Hole, termination Solder, number of positions 10, connector type Header.
In Stock: 18,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.435" (11.05mm) |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | 0.690" (17.53mm) |
| Insulation Height | 0.130" (3.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | White |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0022032102 and get a quote within 24 hours.
