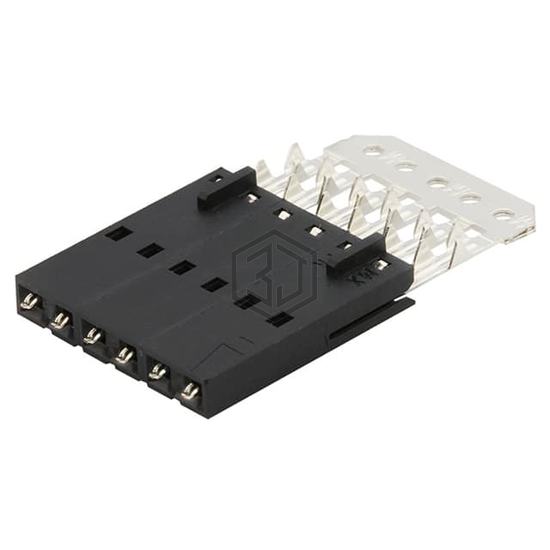

CONN CIC FFC PLUG 6POS 2.54MM
0015389062 is a FFC, FPC (Flat Flexible) Connectors manufactured by Molex. CONN CIC FFC PLUG 6POS 2.54MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, voltage rating 250V, housing material Polybutylene Terephthalate (PBT).
In Stock: 6,746
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | CIC, FFC |
| Mounting Type | Free Hanging (In-Line) |
| Connector/Contact Type | Plug |
| Number of Positions | 6 |
| Pitch | 0.100" (2.54mm) |
| Termination | IDC |
| FFC, FCB Thickness | 0.005 ~ 0.11mm, 0.36mm |
| Height Above Board | - |
| Locking Feature | Latch Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 250V |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 0015389062 and get a quote within 24 hours.
