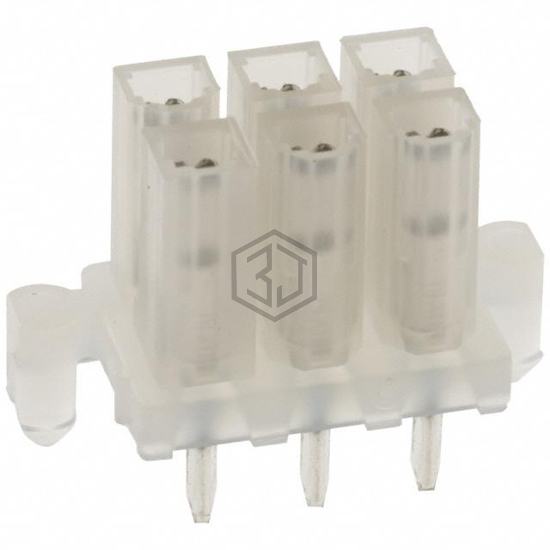

CONN RCPT 6POS 0.165 TIN PCB
0015247060 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 6POS 0.165 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 600V, termination Solder.
In Stock: 9,436
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Insulation Color | Natural |
| Insulation Height | 0.446" (11.33mm) |
| Contact Length - Post | 0.138" (3.50mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Lock |
| Current Rating (Amps) | - |
| Voltage Rating | 600V |
Submit your RFQ for 0015247060 and get a quote within 24 hours.
