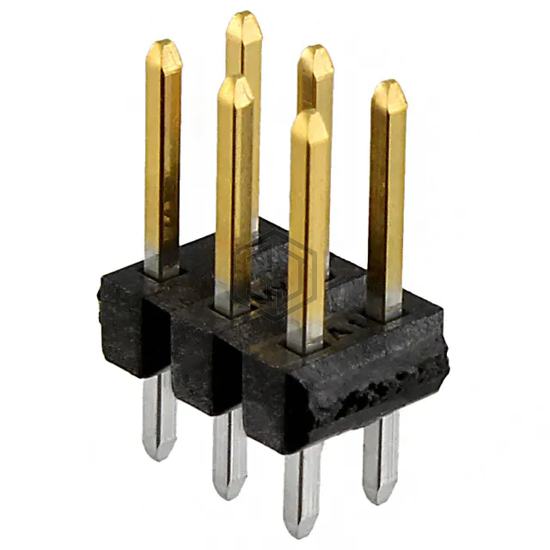

CONN HEADER VERT 6POS 2.54MM
0010897060 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 6POS 2.54MM. Key specifications: mounting type Through Hole, contact material Copper Alloy, termination Solder, number of positions 6.
In Stock: 3,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.107" (2.71mm) |
| Overall Contact Length | 0.437" (11.10mm) |
| Insulation Height | 0.090" (2.29mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0010897060 and get a quote within 24 hours.
