CONN HEADER VERT 9POS 6.35MM

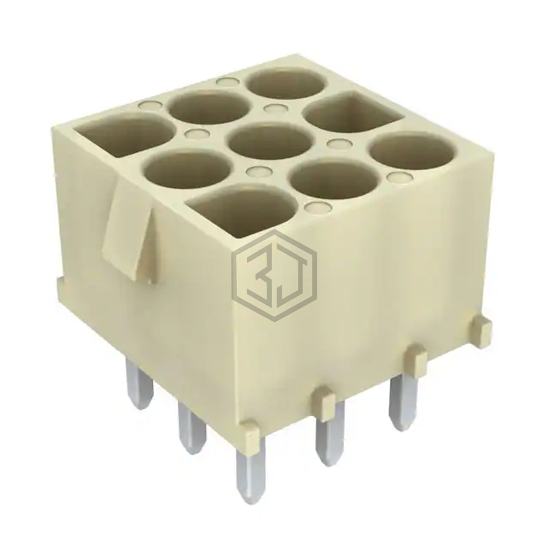

0010845090 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 9POS 6.35MM. Key specifications: mounting type Through Hole, termination Solder, number of positions 9, connector type Header.
In Stock: 3,535
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.169" (4.30mm) |
| Overall Contact Length | - |
| Insulation Height | 0.550" (13.97mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 137.8µin (3.50µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 0010845090 and get a quote within 24 hours.
