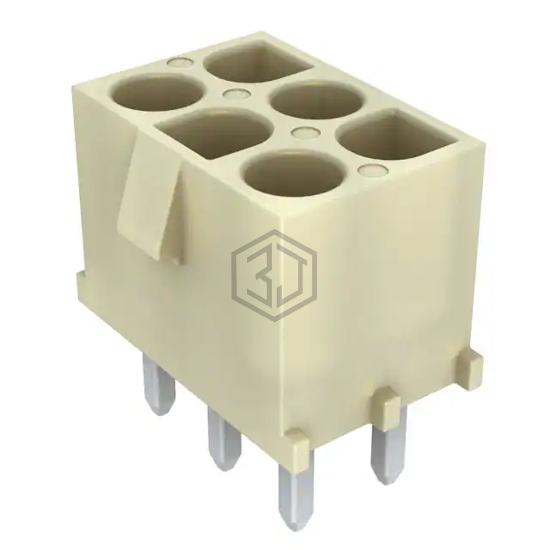

CONN HDR 6POS 0.25 TIN PCB
0010845061 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN HDR 6POS 0.25 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 600V, termination Solder.
In Stock: 2,326
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Cable/Wire |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.250" (6.35mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 137.8µin (3.50µm) |
| Insulation Color | Natural |
| Insulation Height | 0.550" (13.97mm) |
| Contact Length - Post | 0.169" (4.30mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 600V |
Submit your RFQ for 0010845061 and get a quote within 24 hours.
