CONN HEADER VERT 11POS 5.08MM

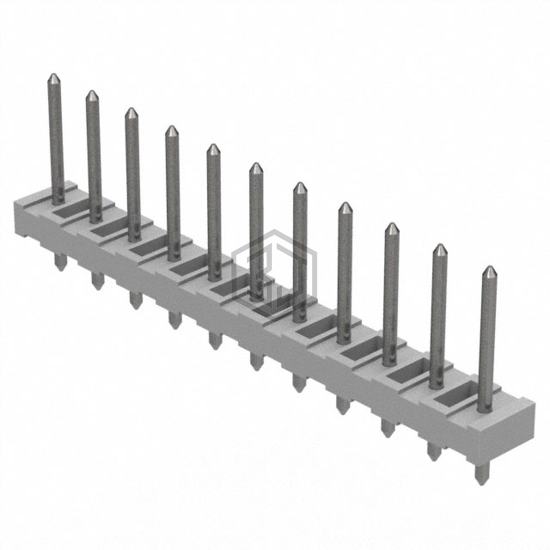

0010081111 is a Rectangular Connectors - Headers, Male Pins manufactured by Molex. CONN HEADER VERT 11POS 5.08MM. Key specifications: mounting type Through Hole, contact material Brass, termination Solder, number of positions 11.
In Stock: 5,146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.470" (11.94mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Overall Contact Length | 0.750" (19.05mm) |
| Insulation Height | 0.125" (3.18mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
