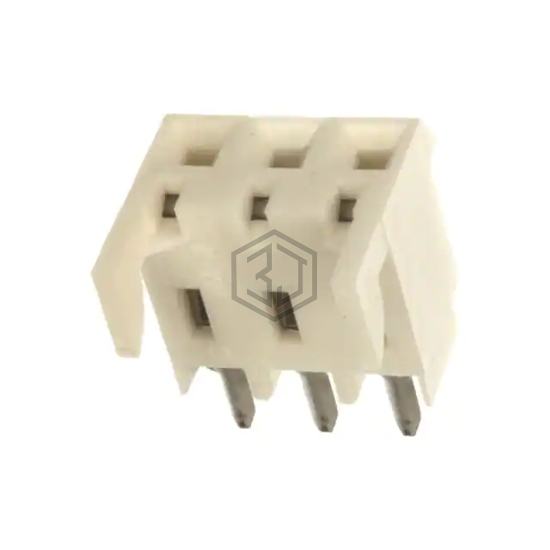

CONN RCPT 3POS 0.156 TIN PCB
0009482033 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 3POS 0.156 TIN PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C, voltage rating 600V, current rating (amps) 4.5A.
In Stock: 1,933
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Insulation Color | Natural |
| Insulation Height | 0.449" (11.40mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Operating Temperature | -40°C ~ 80°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Hooks |
| Current Rating (Amps) | 4.5A |
| Voltage Rating | 600V |
Submit your RFQ for 0009482033 and get a quote within 24 hours.
