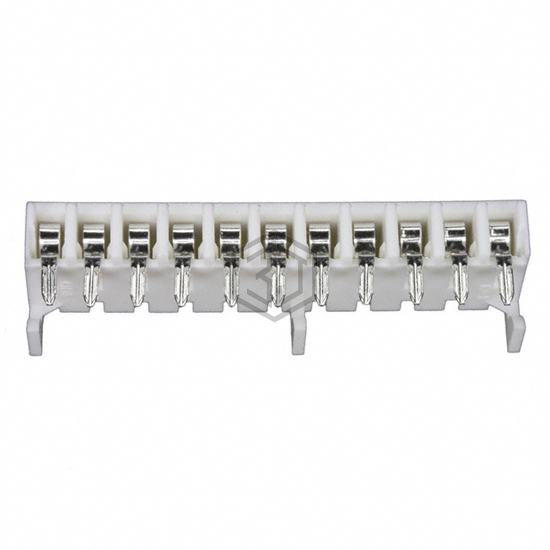

CONN RCPT 11P 0.156 TIN EDGE MNT
0009481114 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Molex. CONN RCPT 11P 0.156 TIN EDGE MNT. Key specifications: mounting type Board Edge, Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 600V, current rating (amps) 5A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.156" (3.96mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Insulation Color | Natural |
| Insulation Height | 0.308" (7.82mm) |
| Contact Length - Post | 0.145" (3.68mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Hooks |
| Current Rating (Amps) | 5A |
| Voltage Rating | 600V |
Submit your RFQ for 0009481114 and get a quote within 24 hours.
