5 CABLE 2X LTE 2X WIFI 1X GNSS

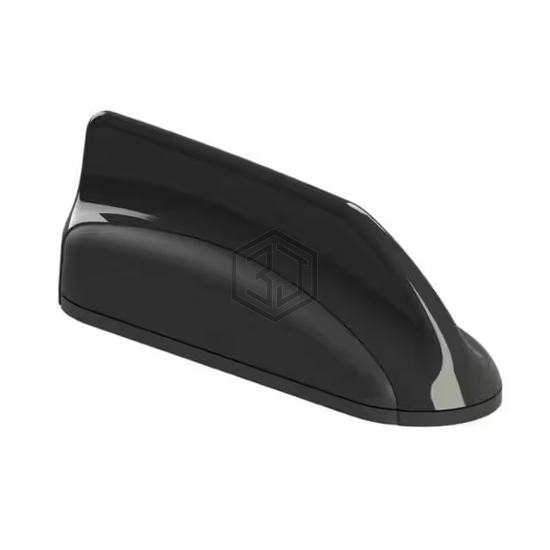

MXFG508-3C3C3J3J2C-BLK-180 is a RF Antennas manufactured by Mobile Mark Antenna Solutions. 5 CABLE 2X LTE 2X WIFI 1X GNSS. Key specifications: mounting type Through Hole, termination SMA Male, ingress protection IP67, power - max 10 W.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 658.5MHz, 830MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 2.45GHz, 3.8GHz, 5.45GHz, 5.45GHz |
| Frequency Range | 617MHz ~ 700MHz, 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Module |
| Number of Bands | 10 |
| VSWR | 2.5 |
| Return Loss | - |
| Gain | 1dBi, 3dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi, 6dBi, 6dBi, 5dBi |
| Power - Max | 10 W |
| Features | Cable - 1.52m, LNA |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Through Hole |
| Height (Max) | 2.520" (64.00mm) |
| Applications | GNSS, LTE, Wi-Fi |
Submit your RFQ for MXFG508-3C3C3J3J2C-BLK-180 and get a quote within 24 hours.
