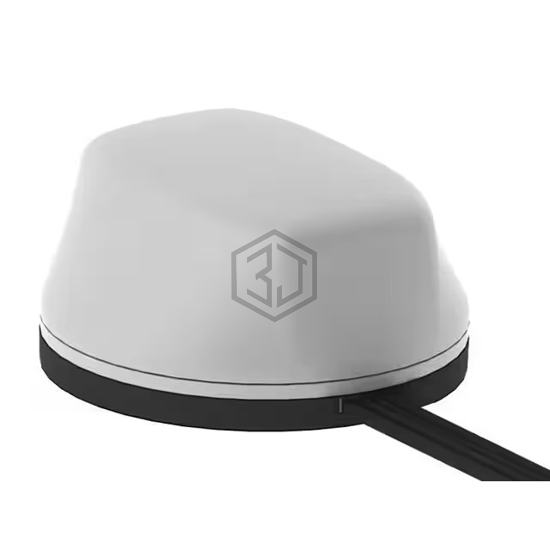

MAG-MOUNT 2X 4G/LTE, WIFI, GPS
MLTM402-3C3C3J2C-WHT-180 is a RF Antennas manufactured by Mobile Mark Antenna Solutions. MAG-MOUNT 2X 4G/LTE, WIFI, GPS. Key specifications: mounting type Magnetic, Surface Mount, termination SMA (1), RP-SMA (3), ingress protection IP67, power - max 10 W.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 827MHz, 1.575Hz, 2.45GHz, 2.705GHz, 5.45GHz |
| Frequency Range | 694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 2.4GHz ~ 2.5GHz, 1.71GHz ~ 3.7GHz, 4.9GHz ~ 6GHz |
| Antenna Type | Dome |
| Number of Bands | 5 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 3dBi, 5dBi, 5dBi, 4dBi, 5dBi |
| Power - Max | 10 W |
| Features | Cable - 4.5m |
| Termination | SMA (1), RP-SMA (3) |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic, Surface Mount |
| Height (Max) | 2.780" (70.60mm) |
| Applications | GPS, LTE, Wi-Fi |
Submit your RFQ for MLTM402-3C3C3J2C-WHT-180 and get a quote within 24 hours.
