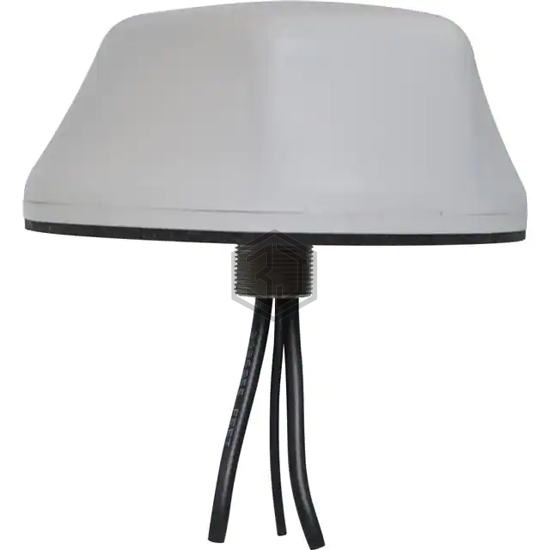

2x 5G/LTE GNSS 3-Cable Fleet Mgt
LTMG308-3C3C2C-WHT-180 is a RF Antennas manufactured by Mobile Mark Antenna Solutions. 2x 5G/LTE GNSS 3-Cable Fleet Mgt. Key specifications: mounting type Surface Mount, termination SMA Male, power - max 10 W, frequency range 617MHz ~ 960MHz, 1.71GHz ~ 6GHz.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 3.855GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.71GHz ~ 6GHz |
| Antenna Type | Dome |
| Number of Bands | 5 |
| VSWR | 2, 2.2 |
| Return Loss | - |
| Gain | 3dBi, 5dBi, 5dBi, 5dBi, 4dBi |
| Power - Max | 10 W |
| Features | Cable - 4.572m, LNA |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 2.380" (60.45mm) |
| Applications | Beidou, GLONASS, GPS, GNSS, GSM, LTE |
Submit your RFQ for LTMG308-3C3C2C-WHT-180 and get a quote within 24 hours.
