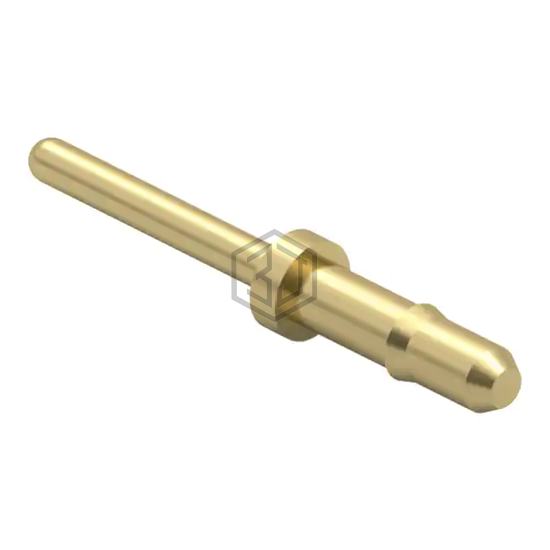

9994-0-00-15-00-00-03-0 - Mill-Max Manufacturing Corp. - Terminals - PC Pin, Single Post Connectors

9994-0-00-15-00-00-03-0

Mill-Max Manufacturing Corp.

.280" LONG PRESS-FIT PIN

9994-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. .280" LONG PRESS-FIT PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit.

In Stock: 7,359

Product Attributes

AttributeValue
Product StatusActive
Terminal TypePC Pin
Terminal StyleDouble End
Pin Size - Above Flange0.020" (0.51mm) Dia
Pin Size - Below Flange0.030" (0.76mm) Dia
Length - Above Flange0.150" (3.81mm)
Length - Below Flange0.115" (2.92mm)
Length - Overall0.280" (7.11mm)
Flange Diameter0.045" (1.14mm)
Mounting Hole Diameter0.033" (0.84mm)
Mounting TypeThrough Hole
TerminationPress-Fit
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10.0µin (0.25µm)

Frequently Asked Questions

9994-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. .280" LONG PRESS-FIT PIN

The mounting type of 9994-0-00-15-00-00-03-0 is Through Hole.

The material of 9994-0-00-15-00-00-03-0 is Brass Alloy.

The termination type of 9994-0-00-15-00-00-03-0 is Press-Fit.
