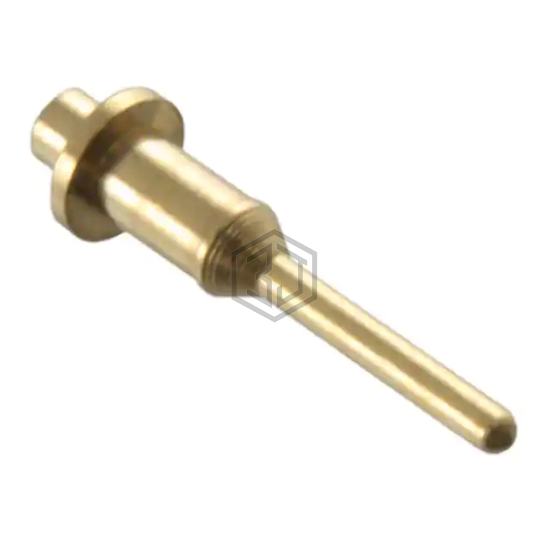

CONN PC PIN CIRC 0.018DIA GOLD
9976-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.018DIA GOLD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit.
In Stock: 1,210
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia |
| Pin Size - Below Flange | 0.030" (0.76mm) Dia |
| Length - Above Flange | 0.205" (5.21mm) |
| Length - Below Flange | - |
| Length - Overall | 0.240" (6.10mm) |
| Flange Diameter | 0.060" (1.52mm) |
| Mounting Hole Diameter | 0.038" (0.97mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 9976-0-00-15-00-00-03-0 and get a quote within 24 hours.
