CONN PC PIN CIRC .018DIA TINLEAD

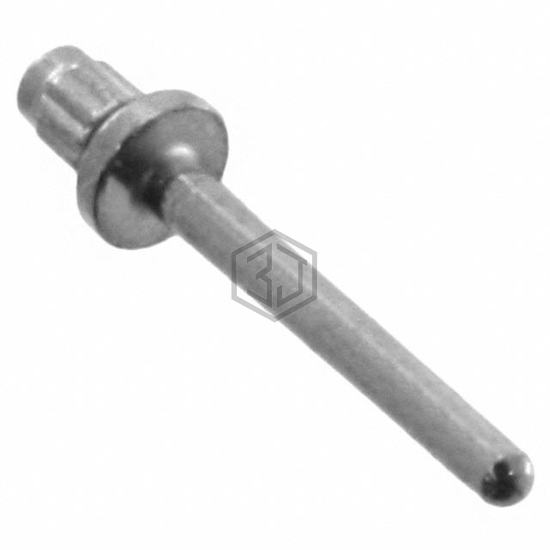

9159-0-00-01-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC .018DIA TINLEAD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit, Knurled.
In Stock: 2,648
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia |
| Pin Size - Below Flange | 0.023" (0.58mm) Dia |
| Length - Above Flange | 0.156" (3.96mm) |
| Length - Below Flange | 0.045" (1.14mm) |
| Length - Overall | 0.211" (5.36mm) |
| Flange Diameter | 0.045" (1.14mm) |
| Mounting Hole Diameter | 0.026" (0.66mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Knurled |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
