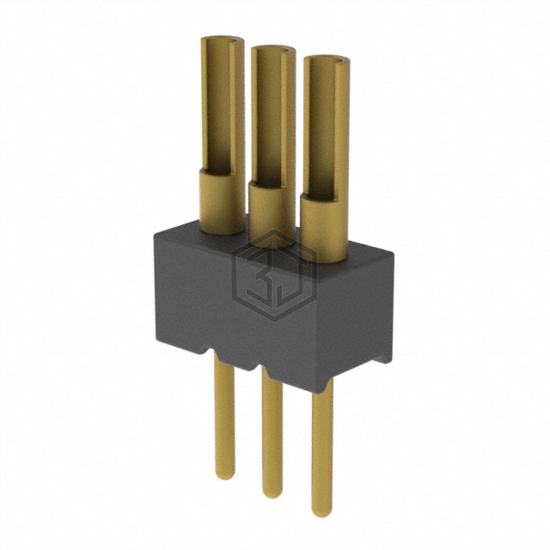

CONN HEADER VERT 3POS 1.27MM
850-10-003-10-003000 is a Rectangular Connectors - Headers, Male Pins manufactured by Mill-Max Manufacturing Corp.. CONN HEADER VERT 3POS 1.27MM. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Solder, number of positions 3.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.100" (2.54mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | 0.303" (7.70mm) |
| Insulation Height | 0.084" (2.14mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 850-10-003-10-003000 and get a quote within 24 hours.
