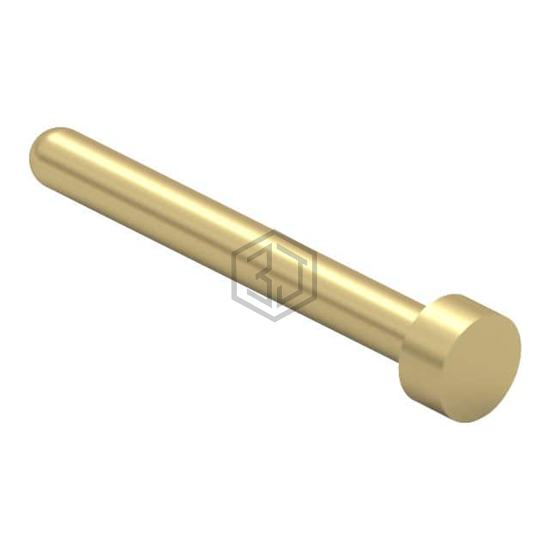

.215" LONG NAIL HEAD PIN
8277-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. .215" LONG NAIL HEAD PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Solder.
In Stock: 13,547
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Nail Head |
| Pin Size - Above Flange | 0.022" (0.56mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.195" (4.95mm) |
| Length - Below Flange | - |
| Length - Overall | 0.215" (5.46mm) |
| Flange Diameter | 0.040" (1.02mm) |
| Mounting Hole Diameter | 0.026" (0.66mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 8277-0-00-15-00-00-03-0 and get a quote within 24 hours.
