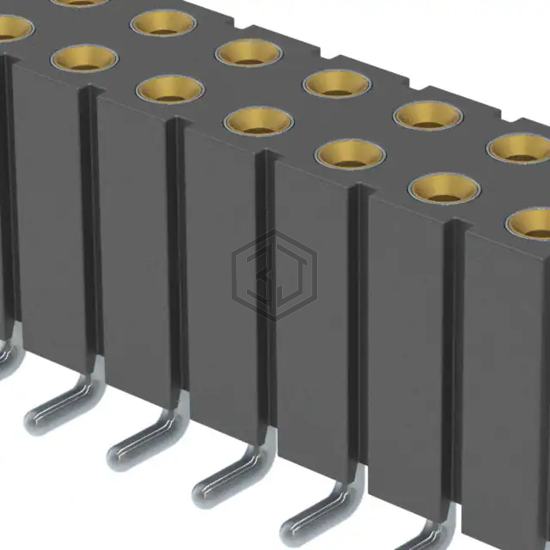

CONN RCPT 36POS 0.1 GOLD SMD
803-93-036-30-001000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Mill-Max Manufacturing Corp.. CONN RCPT 36POS 0.1 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, current rating (amps) 4.5A, termination Solder.
In Stock: 8,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.338" (8.59mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 4.5A |
| Voltage Rating | - |
