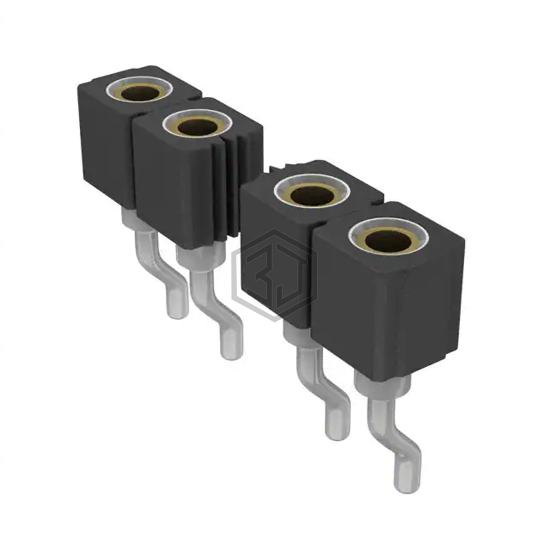

CONN RCPT 5POS 0.1 GOLD SMD R/A
801-43-005-40-002000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Mill-Max Manufacturing Corp.. CONN RCPT 5POS 0.1 GOLD SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 125°C, current rating (amps) 4.5A, termination Solder.
In Stock: 154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 5 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 4.5A |
| Voltage Rating | - |
Submit your RFQ for 801-43-005-40-002000 and get a quote within 24 hours.
