SPRING-LOADED PIN WITH SOLDER CU

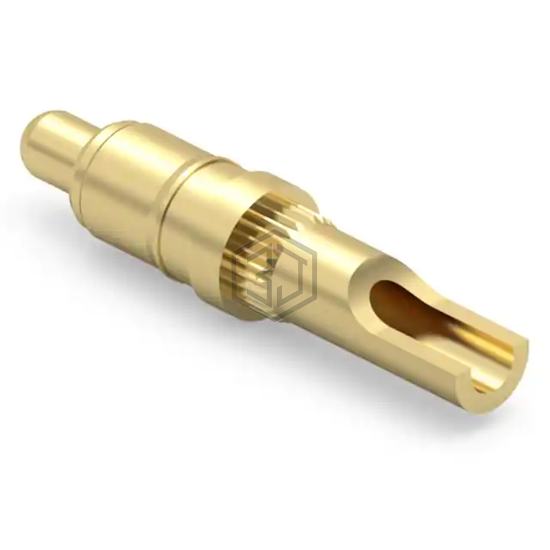

7983-1-15-20-75-14-11-0 is a Contacts, Spring Loaded (Pogo Pins), and Pressure manufactured by Mill-Max Manufacturing Corp.. SPRING-LOADED PIN WITH SOLDER CU. Key specifications: mounting type Through Hole, Solder Cup, contact material Beryllium Copper.
In Stock: 1,493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Mounting Type | Through Hole, Solder Cup |
| Maximum Working Height | 0.194" (4.93mm) |
| Recommended Working Height | 0.166" (4.23mm) |
| Minimum Working Height | 0.139" (3.53mm) |
| Pad Layout Dimension | Circular - 0.083" (2.11mm) (TH) |
| Operating Force - Initial | 25gf |
| Operating Force - Mid Compression | 60gf |
| Plunger Size | 0.042" (1.07mm) Dia |
| Features | 22 AWG |
| Mating Cycles | 1000000 |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
Submit your RFQ for 7983-1-15-20-75-14-11-0 and get a quote within 24 hours.
