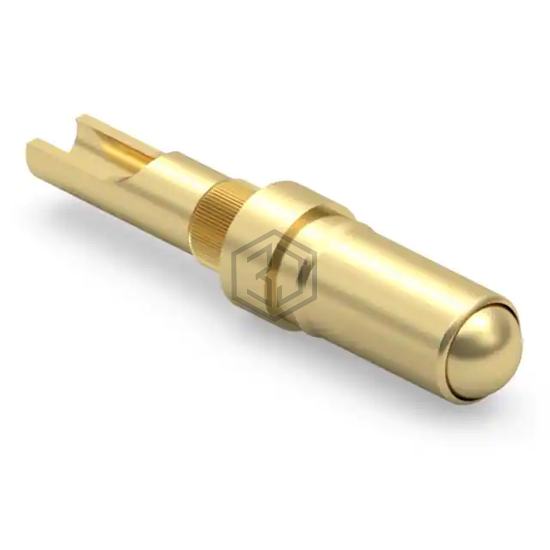

SPRING LOADED PIN WITH SOLDERCUP
7949-0-15-20-09-14-11-0 is a Contacts, Spring Loaded (Pogo Pins), and Pressure manufactured by Mill-Max Manufacturing Corp.. SPRING LOADED PIN WITH SOLDERCUP. Key specifications: mounting type Through Hole, Solder Cup, contact material Copper Alloy.
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Mounting Type | Through Hole, Solder Cup |
| Maximum Working Height | 0.291" (7.39mm) |
| Recommended Working Height | 0.276" (7.00mm) |
| Minimum Working Height | 0.261" (6.63mm) |
| Pad Layout Dimension | Circular - 0.118" (3mm) (TH) |
| Operating Force - Initial | 30gf |
| Operating Force - Mid Compression | 55gf |
| Plunger Size | 0.091" (2.31mm) Dia |
| Features | 20 AWG |
| Mating Cycles | 1000000 |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
Submit your RFQ for 7949-0-15-20-09-14-11-0 and get a quote within 24 hours.
