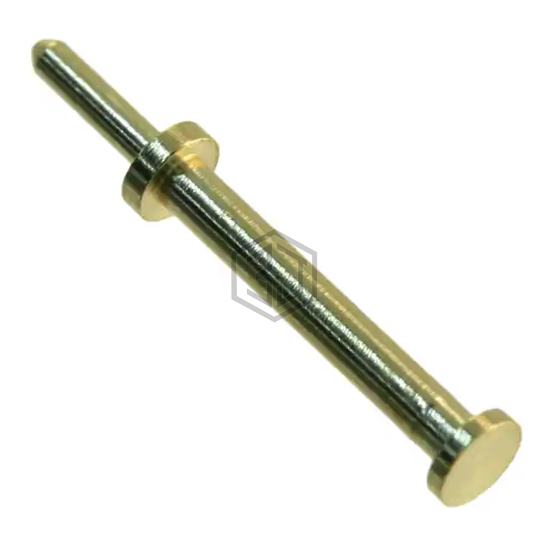

CONN PC PIN CIRC 0.030DIA GOLD
6821-0-00-15-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.030DIA GOLD. Key specifications: mounting type Free Hanging (In-Line), contact material Brass Alloy, termination Solder.
In Stock: 40,016
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Turret |
| Pin Size - Above Flange | 0.030" (0.76mm) Dia |
| Pin Size - Below Flange | 0.040" (1.02mm) Dia |
| Length - Above Flange | 0.125" (3.18mm) |
| Length - Below Flange | 0.300" (7.62mm) |
| Length - Overall | 0.445" (11.30mm) |
| Flange Diameter | 0.070" (1.77mm) |
| Mounting Hole Diameter | - |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 6821-0-00-15-00-00-08-0 and get a quote within 24 hours.
