CRIMP TERMINAL PIN WITH INSPECTI

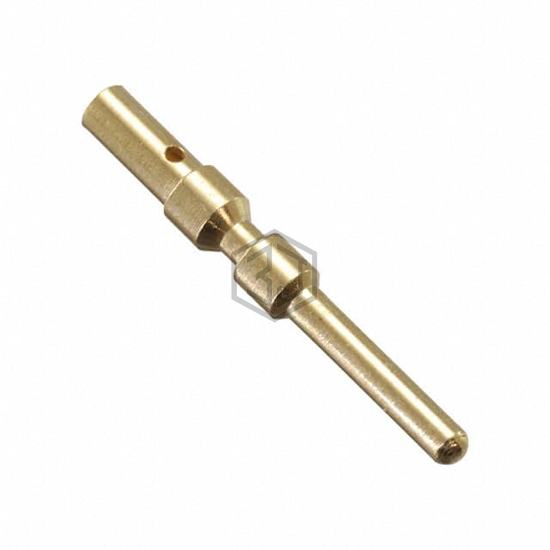

6618-0-07-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CRIMP TERMINAL PIN WITH INSPECTI. Key specifications: mounting type Free Hanging (In-Line), contact material Brass Alloy, termination Crimp.
In Stock: 633
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Wire |
| Pin Size - Above Flange | 0.078" (1.98mm) Dia |
| Pin Size - Below Flange | 0.106" (2.69mm) Dia |
| Length - Above Flange | 0.612" (15.55mm) |
| Length - Below Flange | 0.253" (6.43mm) |
| Length - Overall | 0.992" (25.20mm) |
| Flange Diameter | 0.131" (3.33mm) |
| Mounting Hole Diameter | - |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 6618-0-07-15-00-00-03-0 and get a quote within 24 hours.
